SKH-7161-1   F    F   N -40   J   M    N     A
 (1)     (2)  (3) (4) (5) (6) (7) (8) (9) (10) (11)
(1) Type: SKH (Bag).
(2) Bag Dia. and Length: 4161-4"x16", 4251-4"x25", 7161-7"x16", 7251-7"x25", 7321-7"x32", 8161-8"x16", 8251-8"x25", 8321-8"x32", 716D-7"x16" with Cartridge 10"x7, 816D-8"x16" with Cartridge 10"x8.
(3) Power: A-250W(1/2HP), 1-1HP, 2-2HP, 3-3HP, 5-5HP.
(4) Pump Head: F-FRPP, P-CFRPP, K-PVDF.
(5) Connection: F-Flange, U-Union.
(6)Elastomer: N-NBR, E-EPDM, V-VITON.
(7) iN/Outlet Size: 25-1"X1", 40-1.5"X1.5", 50-2"X2", 65-2.5"X2.5".
(8) Standard: J-JIS, D-DIN, A-ANSI.
(9) Pump Inside: M-SM Pump, C-CM Pump.
(10) N-Normal Model, S-Special Model, K-Stainless Steel Reinforced Cover, H-Thickening Cover.
(11) A-Extra Release Valve on Cover.
Features:
Patented lid fastener allow for easy filter bag replacement without the need for tools.
Filter housing made from 100% polypropylene material in a single piece injected molding that can resist high temperature and pressure.
Filter bag 5 - 20 can be ordered to customer specification.

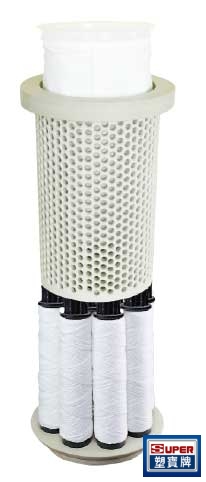

The filter system utilizes standard off-the-shelf bags. The internal basket is made of polyprophlene and includes a snap ring for securing the bag in place.
Inlet and outlet can be made to fit customer's specifications.
Pump specifications can be tailored to customer's needs in both power and features.
Filter housing is rated to 42.67 PSI (3 KG/ CM2).

Bag only	Bag with cartridge

Model		4161	4251	7161	7251	7321	8161	8251	8321	716D	816D
Capacity (M3/H)		6	10	15~20	20~30	25~35	15~20	20~30	25~40	15	15
Media	Bag(UType	4.5X16"	4.5X25"	7x16"	7x25"	7x32"	8x16"	8x25"	8x32"	7x16" Cartridge 710	8x16" Cartridge 810
Chamber Dia.	(mm)	200	200	280	280	280	315	315	315	280	315
Max. Temp.()		65	65	65	65	65	65	65	65	65	65
Power (HP)		1/3	1/3~1	1~2	1~3	2~5	1~2	1~3	2~5	1~2	1~2
Demensions (mm)	Length(A)	570	570	730	730	730	730	730	730	730	730
	Width (B)	355	355	445	445	445	445	445	445	445	445
	Height(C)	910	1170	1270	1143	1735	1270	1430	1735	1430	1430
Out/Inletmm		25	25~40	40~65	40~65	50~65	40~65	40~65	50~65	40~50	40~50
Weight (Kg)		28	35~50	75	80	86	82	88	92	78	85
