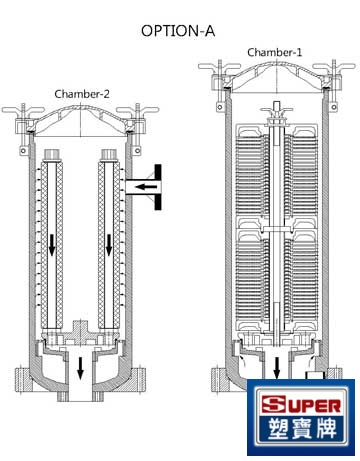

GKD High pressure 2 towers filtration system(For activated carbon)

Product： GKD High pressure 2 towers filtration system(For activated carbon), Category： GKD

Place to sell : Email: info@namlap.com.vn - Hotline: +84908312860

Share :

Product details

GKD-2018-3 C B N J - H

(1) (2) (3) (4) (5) (6) (7) (8)

(1) Type: GKD.

(2) Cartridge Nos for Chamber 1: 2008-20"x8, 2012-20"x12, 2018-20"x18.

(3) Power: 2-2HP, 3-3HP.

(4) Construction of Chamber 1: C-Plate Locking Cartridge, P-Paper, K-Star Cloth, B-Nut Locking Cartridge.

(5) Construction of Chamber 2: C-Plate Locking Cartridge, B-Nut Locking Cartridge.

(6) Elastomer: N-NBR, E-EPDM, V-VITON.

(7) Standard: J-JIS, D-DIN, A-ANSI.

(8) Pump Inside: D-SD Pump, H-HD Pump, C-SDC Pump, P-SDP Pump, M-SM Pump.

Features:

Model		2008-2	2012-2	2018-3
Capacity (L/min)		180	220	330
For Tank (ton)		2~2.5	2.5~4	4~6.5
Chamber One Options	Plate Locking Cartridge Nos	20"x8	20"x12	20"X18
	Paper Nos	234Øx40	302Øx40	370ØX38
	Star Bag	1Set (36pcs)	1Set (48pcs)	1Set (56pcs)
Max Temp. (C)		65	65	65
Power (HP)		2	2	3
Chamber Two Options	Nut Locking Cartridge Nos	20"X8	20"X8	20"X8
Chamber One Out/Inlet		1-1/2"	1-1/2"~2"	2"
Chamber Two Out/Inlet		1-1/2"	1-1/2"~2"	2"
Weight (Kg)		110	145	160
