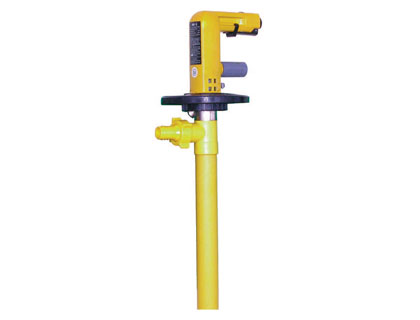

Handy pump
Product： Handy pump, Category： MD2
Share :
| 型 式 | SL-MS | 曲线 | 全流量L/min | 全扬程M | 黏度(CPS) | 入口径mm | 出口径mm | 适用温度(°C) | 管长度700mm | 管长度1000mm | 管长度1200mm | 重量KG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PP40-R | MS | A | 150 | 10 | 600 | 40 | 3/4" | 50 | O | O | O | 1.1 |
| PP40-L | MS | B | 110 | 19 | 850 | 40 | 3/4" | 50 | O | O | O | 1.1 |
| PP41-R/SL | SL | C | 160 | 8.5 | 350 | 40 | 3/4" | 50 | O | O | O | 1.1 |
| PP41-L/SL | SL | F | 85 | 19 | 500 | 40 | 3/4" | 50 | O | O | O | 1.1 |
| PVDF50-L/SL | SL | B | 110 | 19 | 300 | 50 | 1" | 120 | X | O | O | 1.6 |
| ALU-41R | MS | D | 210 | 10 | 350 | 41 | 1" | 100 | O | O | O | 2.6 |
| ALU-41L | MS | E | 117 | 19 | 500 | 41 | 1" | 100 | O | O | O | 2.6 |
| ALU-41R/SL | SL | D | 210 | 10 | 350 | 41 | 1" | 100 | O | O | O | 2.6 |
| ALU41L/SL | SL | E | 117 | 19 | 500 | 41 | 1" | 100 | O | O | O | 2.6 |
| SS41R | MS | D | 210 | 10 | 350 | 41 | 1" | 100 | O | O | O | 2.9 |
| SS-41L | MS | E | 117 | 19 | 500 | 41 | 1" | 100 | O | O | O | 2.9 |
| SS-41R/SL | SL | D | 210 | 10 | 350 | 41 | 1" | 100 | O | O | O | 2.9 |
| SS-41L/SL | SL | E | 117 | 19 | 500 | 41 | 1" | 100 | O | O | O | 2.9 |
