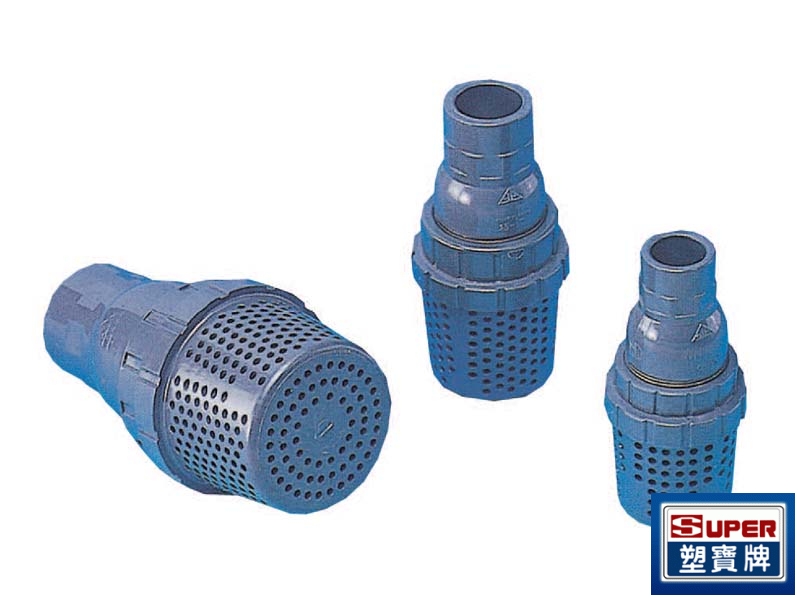

View full size
| SIZE Nom. |
15mm (1/2") |
20mm (3/4") |
25mm (1") |
40mm (1-1/2") |
50mm (2") |
65mm (2-1/2") |
80mm (3") |
100mm |
|
|---|---|---|---|---|---|---|---|---|---|
| Thd | NPT | 14 | 14 | 11.5 | 11.5 | 11.5 | 8 | 8 | 8 |
| BSPT | 14 | 14 | 11 | 11 | 11 | 11 | 11 | 11 | |
| JIS | d1 | 21.7 | 25.7 | 31.67 | 47.54 | 59.44 | 75.33 | 88.83 | 113.98 |
| d2 | 22.3 | 26.3 | 32.33 | 48.46 | 60.56 | 76.6 | 89.6 | 114.7 | |
| l | 22.2 | 25.4 | 28.6 | 34.9 | 38.1 | 47.63 | 47.63 | 57.15 | |
| ANSI | d1 | 21.23 | 26.57 | 33.27 | 48.11 | 60.17 | 72.85 | 88.9 | 114.07 |
| d2 | 21.54 | 26.87 | 33.65 | 48.56 | 60.63 | 73.38 | 89.31 | 114.76 | |
| l | 22.22 | 25.4 | 28.58 | 34.93 | 38.1 | 44.45 | 47.63 | 57.15 | |
| DIN | d1 | 20.1 | 25.1 | 32.1 | 50.1 | 63.1 | 75.1 | 90.1 | 110.1 |
| d2 | 20.3 | 25.3 | 32.3 | 50.3 | 63.3 | 75.3 | 90.3 | 110.4 | |
| l | 16 | 19 | 22 | 31 | 38 | 44 | 51 | 61 | |
| d3 | 13 | 20 | 25 | 40 | 50 | 70 | 77 | 102 | |
| D | 60 | 70 | 83 | 110 | 12.4 | 154 | 154 | 154 | |
| H | 128 | 152 | 164 | 195 | 240 | 310 | 310 | 382 | |
